Description

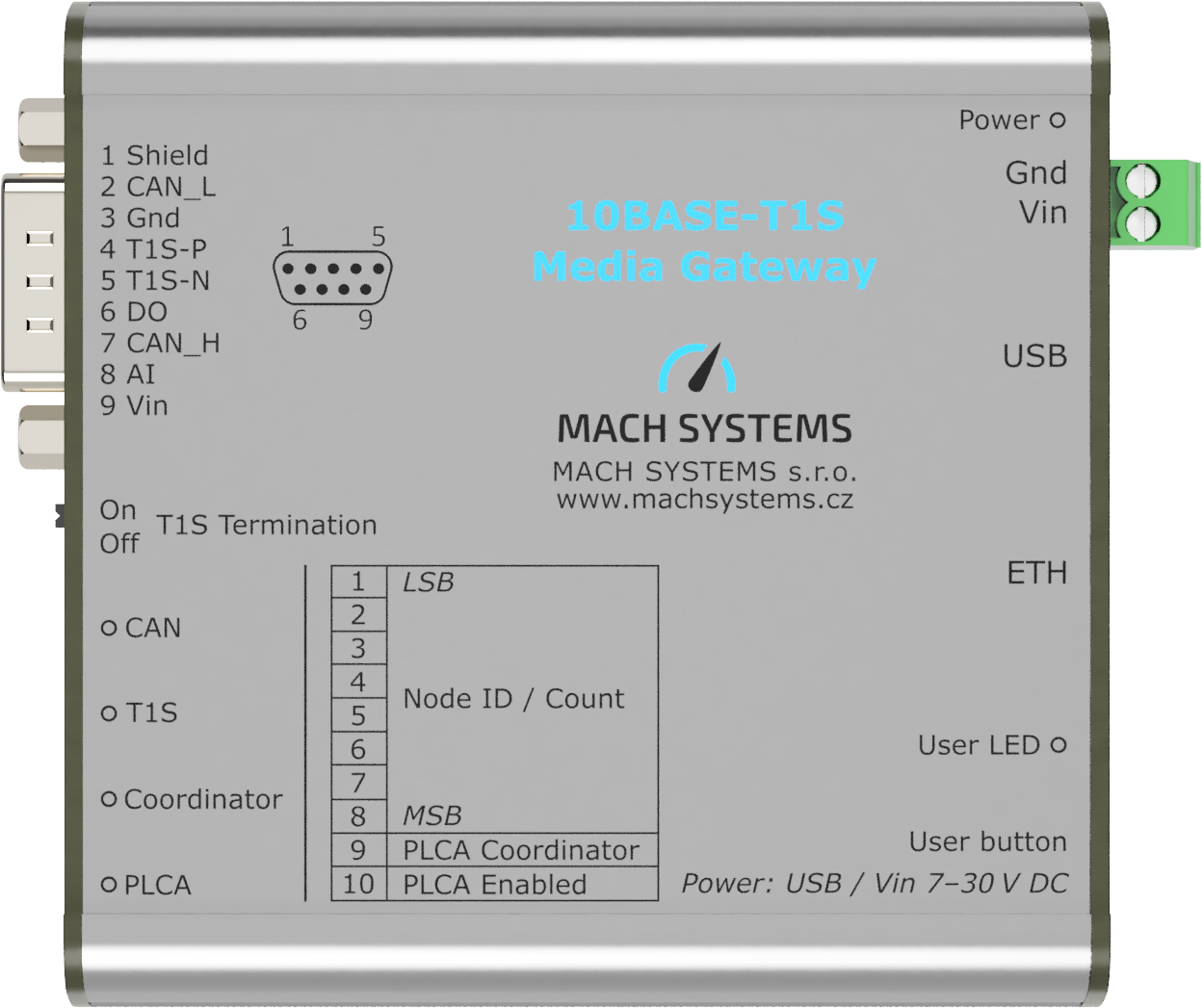

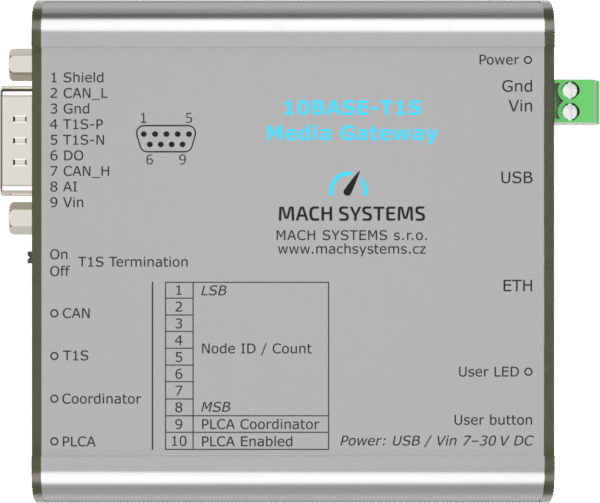

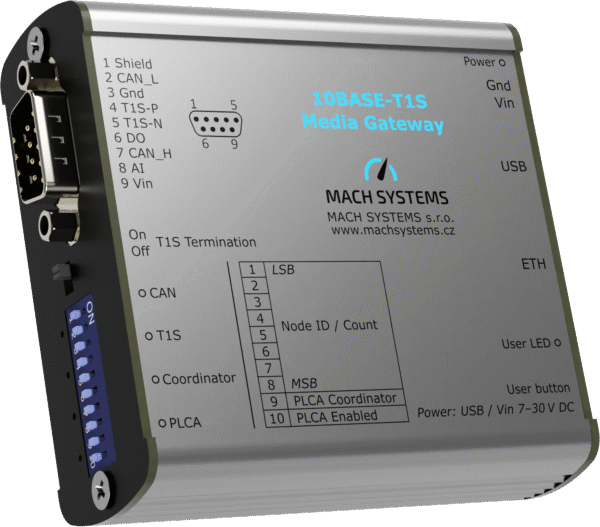

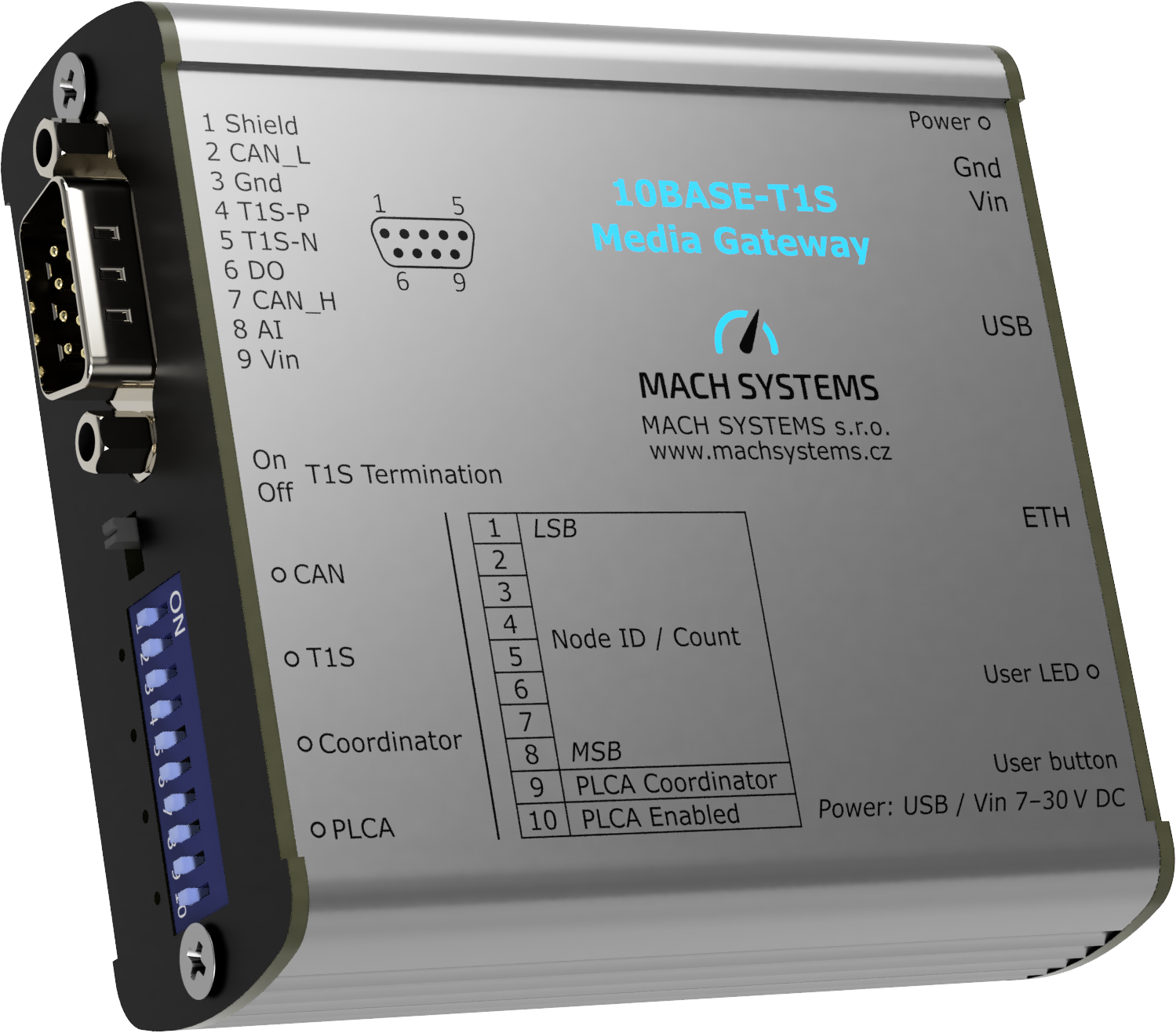

The 10BASE-T1S Media Gateway is a flexible 10BASE-T1S media converter / Ethernet switch with CAN(/FD) gateway and user programming features. The device offers one 10BASE-T1S port, one Fast Ethernet port, a CAN channel with CAN FD support, and a USB 2.0 port.
10BASE-T1S Media Gateway Data Sheet
10BASE-T1S Media Gateway User Manual
10BASE-T1S Ethernet – CAN(/FD) Gateway Protocol Specification
The media gateway can be used as a 10BASE-T1S – Ethernet switch (media converter) enabling a bi-directional communication between the 10BASE-T1S port, the standard Ethernet port, and the MCU, or as an Ethernet-CAN(/FD) gateway providing a data bridge between the Ethernet ports (10BASE-T1S and 100BASE-TX) and the CAN(/FD) channel. Gateway function for bridging a 10BASE-T1S network and a CAN/CAN FD bus can be configured over the embedded web server. The device can also be used as a USB to CAN(/FD) and an Ethernet – CAN(/FD) interface.
The Single-Pair Ethernet 10BASE-T1S port supports both CSMA/CD and PLCA modes, and allows for point-to-point and multi-drop network topologies. The port configuration, such as mode, BEACON transmission (PLCA coordinator), Node ID / Node count, and bus termination, can be easily set by on-board DIP switches or via web interface. 10BASE-T1S test modes can also be generated.
Features
- 10BASE-T1S media converter
- 10BASE-T1S automotive Ethernet switch
- 10BASE-T1S – CAN(/FD) gateway
- 10BASE-T1S test modes generator
- On-board switches for basic configuration
- Embedded web server for advanced configuration and status information
Specification
- 10BASE-T1S port (IEEE 802.cg)
- Supports CSMA/CD and PLCA modes
- Supports PLCA coordinator and follower
- Point-to-point or multi-drop topology
- End-node termination can be easily enabled
- Test modes can be programmaticaly generated
- 10/100BASE-TX port
- CAN(/FD) channel
- Analogue input and digital output
- 8x status LED
- 11x switch for configuration
- USB Type-C connector
Use Cases
- Media conversion between 10BASE-T1S and 10/100BASE-TX
- Gateway between 10BASE-T1S and CAN(/FD)
- Ethernet – CAN(/FD) interface
- USB – CAN(/FD) interface
Technical Specification (short)
| Feature | Description |
|---|---|
| Functions | Web interface for configuration and status information 10BASE-T1S Ethernet switch 10BASE-T1S test mode generator Data between 10BASE-T1S network and CAN/CAN FD bus can be forwarded in both directions Open communication protocol for realizing an Ethernet – CAN(/FD) and a USB – CAN(/FD) interface Firmware upgradable over web |
| Communication channels | Automotive Ethernet:
CAN bus: CAN-HS with ISO CAN FD support (ISO 11898-1:2015; CAN2.0A/B) |
| LEDs | 5x Dual-colour LED 2x ETH LEDs (RJ-45 connector) 1x Power LED |
| Buttons and switches | 10x DIP switches 1x Switch (T1S termination) 1x Push button |
| I/O | 1x Analogue input (0-30 V) 1x Digital output (open-drain, 35 V / 1 A) |
| Power | USB-powered over USB Type-C External 7 – 30 V DC power input (polarity and surge protection) over a 2-pin terminal block or DSUB9 connector |

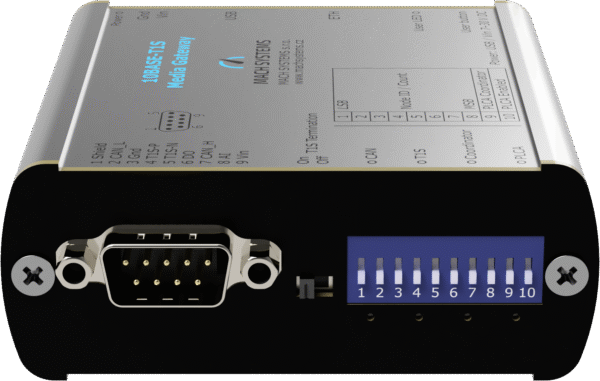

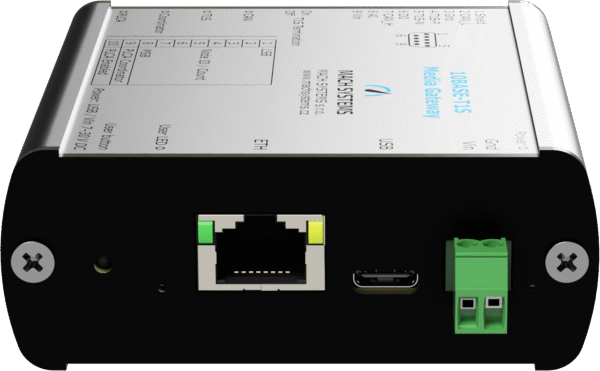

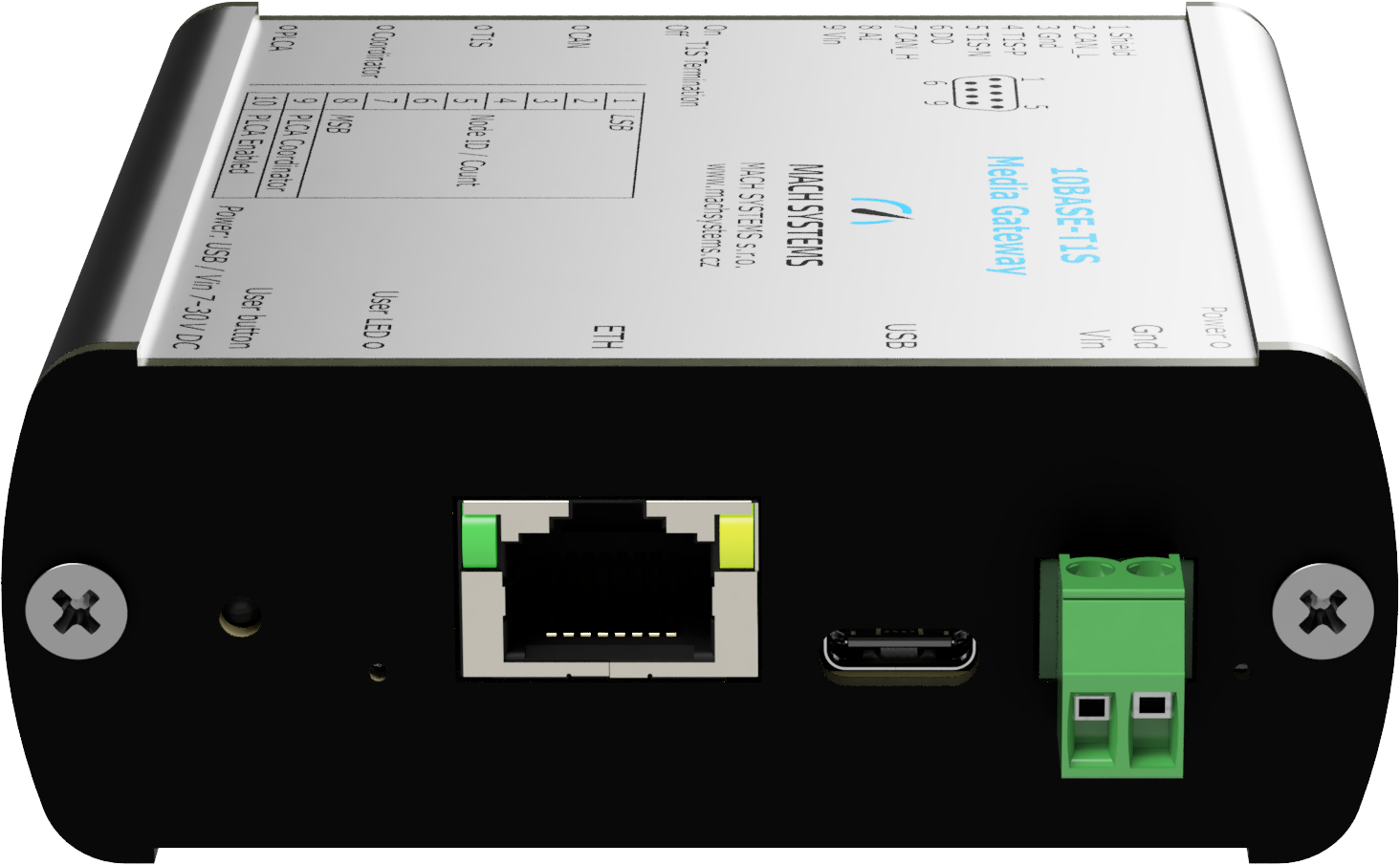

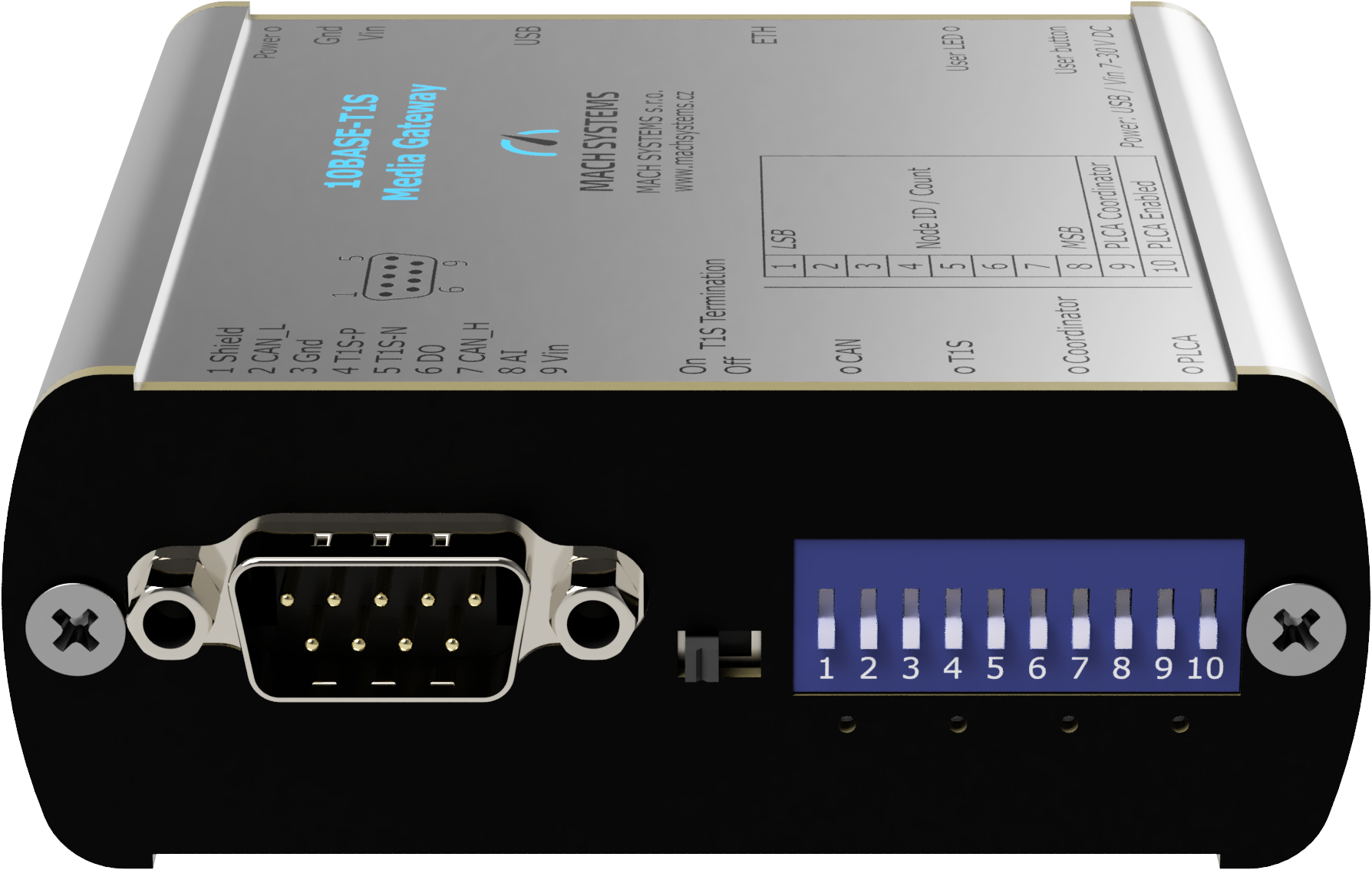

| Connectors | 10BASE-T1S, CAN bus and power: D-SUB 9 Male 100BASE-TX: RJ-45 Power: 2-pin removable terminal block USB 2.0: USB Type-C |
| Dimensions | 88 x 82 x 33 mm |
| Operating temperature | -20 to 70 °C |
| Placement | Table (adhesive pads included) DIN-rail mount (bracket sold separately) |
Detailed specification can be found in the device’s data sheet.
10BASE-T1S Media Conversion

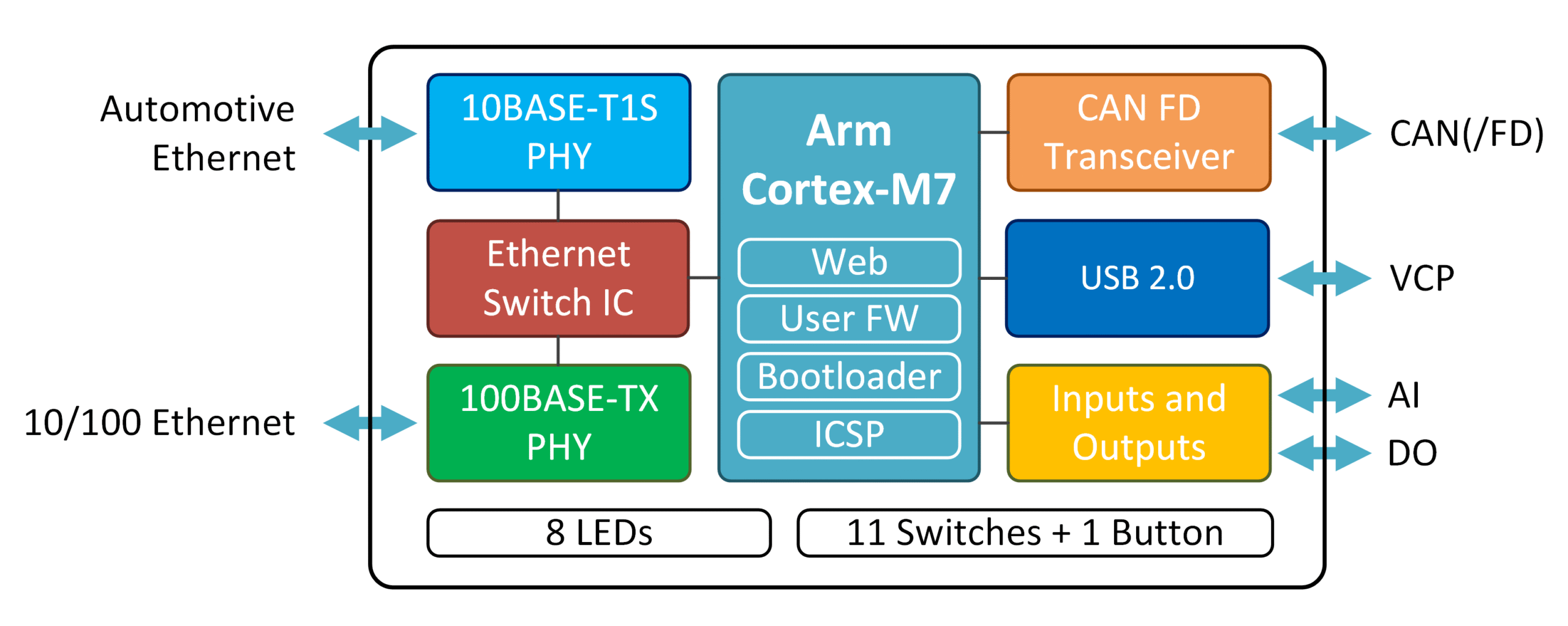

The 10BASE-T1S port, 10BASE-T/100BASE-TX port, and the MCU are connected by an internal Ethernet switch circuit, enabling Ethernet packets to be routed between all the Ethernet ports. Hence, a media conversion between 10BASE-T1S and 10BASE-T1/100BASE-TX ports can be easily realized.
10BASE-T1S – CAN(/FD) Gateway
The media gateway can realize a communication bridge between the Ethernet (10BASE-T1S or 10/100BASE-TX ports) and the CAN(/FD) network. It enables the forwarding of received CAN(/FD) frames to the Ethernet, and conversely, received Ethernet packets to the CAN(/FD) bus. The gateway communication protocol specifies the format of TCP or UDP packets.
C language SDK
The C language SDK (available on request) can be used to develop a custom device firmware. This provides the user a full control over the MCU and its peripherals, and extends the use-case scenarios. The SDK allows to use the on-board Ethernet switch and the Ethernet ports (MCU, 10BASE-T1S, 100BASE-TX), CAN(/FD) channel, LEDs, and DIP switches. The IDE and compiler are available free-of-charge. The custom firmware can be flashed into the device’s MCU over web, USB or ICSP. Debugging and stepping through the code is also possible with appropriate tools.
