Description

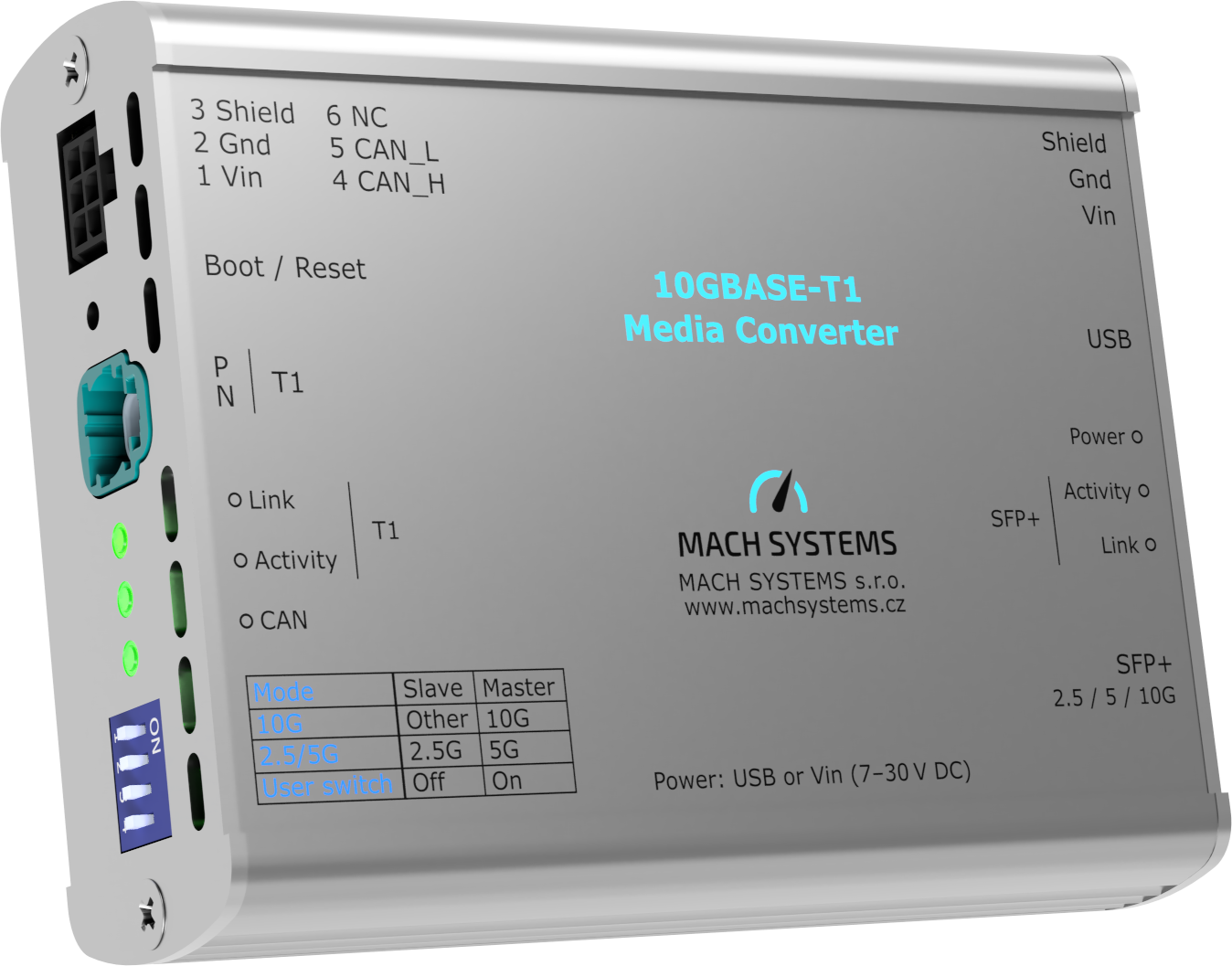

The 10GBASE-T1 Media Converter is a Multigigabit Automotive Ethernet (MultiGBASE-T1) to Standard Ethernet (MultiGBASE-T) converter that supports 10GBASE-T1, 5GBASE-T1, and 2.5GBASE-T1 standards. The media converter realizes a bi-directional physical layer conversion between a 2.5/5/10 gigabit automotive Ethernet (IEEE 802.3ch) and a wire / optical fibre SPF+ module.

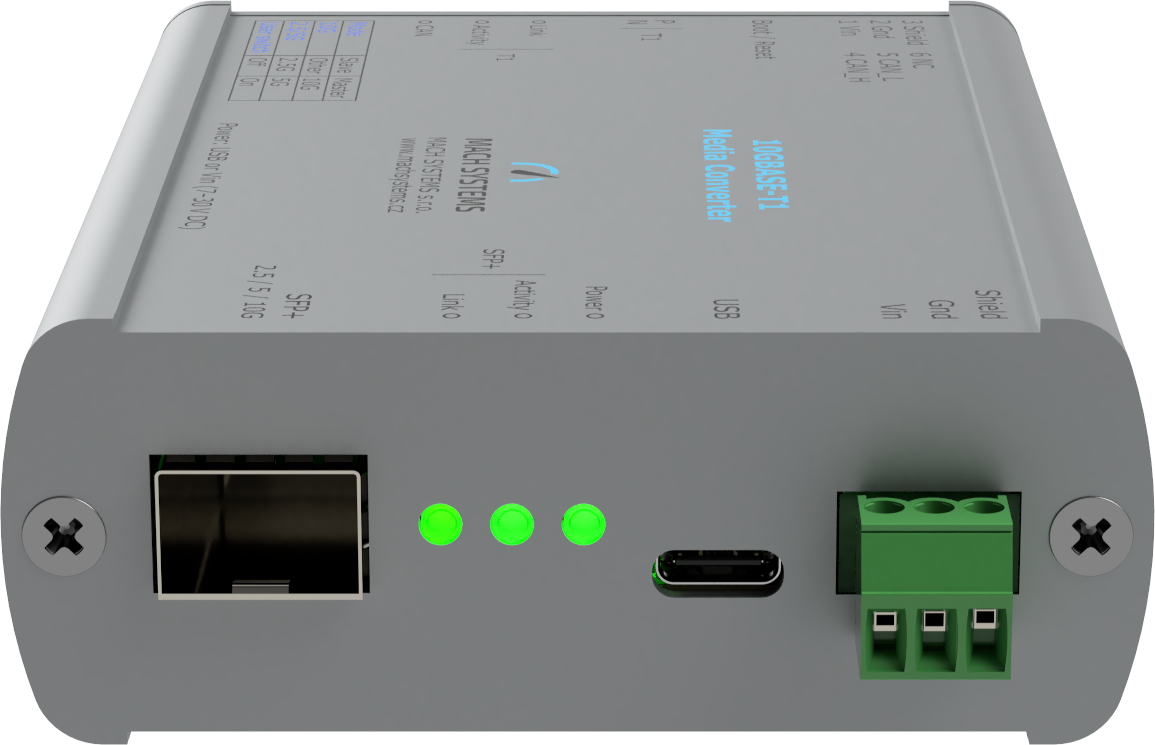

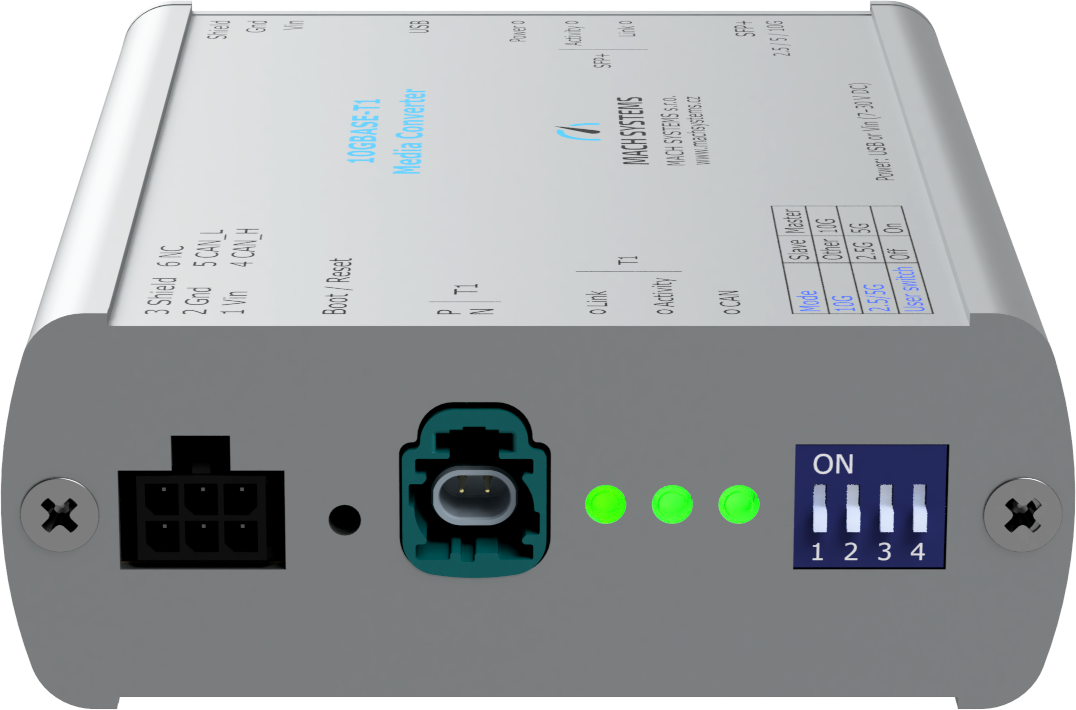

The device supports OPEN Alliance’s MACsec (TC17) and sleep/wake-up (TC10), and features an H-MTD connector (USCAR 777-U-002-1-Z01 compliant) and an SFP+ slot, allowing the use of any SFP+ compatible module.
The master/slave T1 mode and speed selection can be easily configured using the on-board switches. Advanced configuration, status information, and cable diagnostics are available via USB through a free PC application. An open communication protocol over USB and CAN(/FD) can be used to monitor the state and to configure the converter programmatically. Additionally, the media converter can function as a USB to CAN(/FD) interface, operating simultaneously with its conversion function.
Specification
- MultiGig-T1 media converter
- 2.5/5/10GBASE-T1 support (IEEE 802.3ch)
- MACsec support (TC17)
- Sleep/wake-up support (TC10)
- H-MTD automotive Ethernet connector
- SFP+ slot compatible with any module

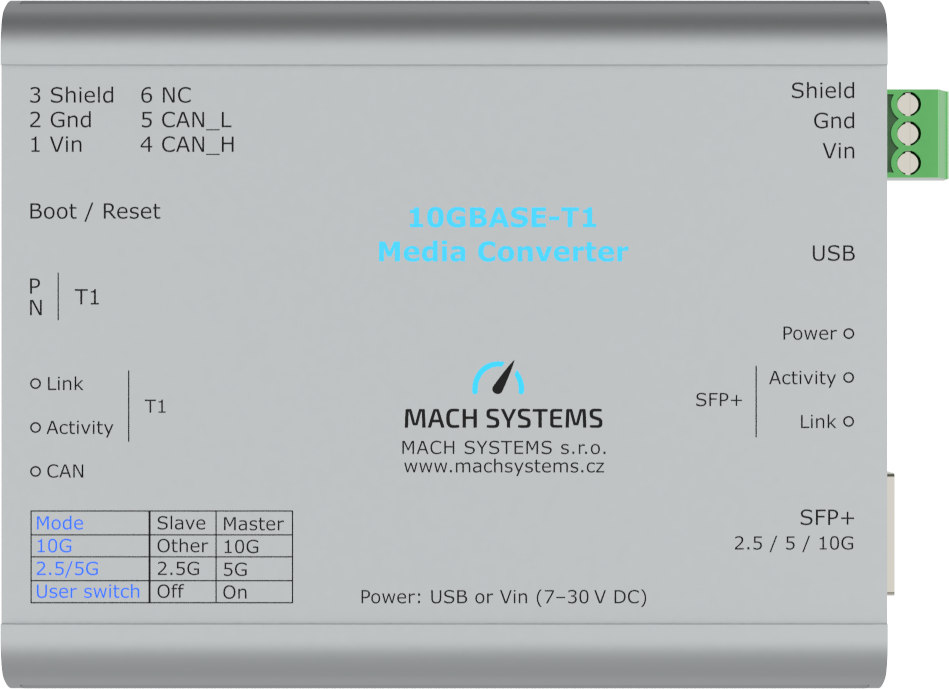

- On-board switches for configuration
- On-board status LEDs
- PC application for status monitoring and configuration
- USB VCP for status information, advanced configuration, and cable diagnostic
- Open communication protocol over USB and CAN(/FD)
- USB-CAN(/FD) interface function
- Powered over USB PD (Type-C), terminal block, or Molex connector
- Aluminium enclosure
Free of Charge PC Application
The Automotive Ethernet Device Tool PC application is provided free-of-charge.
Features:
- Read ports status: link, speed, master/slave, signal quality, insertion and return loss
- Override converter configuration: link speed, master/slave mode
- Configure TC10: read TC10 state, transmit wake-up and sleep commands on the T1 port, enter local sleep
- Configure MACsec
- Run cable test
- Use the media converter as a USB-CAN(/FD) interface: configure CAN channel, transmit/receive CAN and CAN FD frames
The application is available for Microsoft Windows and uses the .NET framework.
Communication Protocol for Integration
The open communication protocol is available to access the media converter over USB or CAN(/FD). The protocol allows to remotely read status and configure both T1 and the SFP module, configure TC10 and MACsec, and use the device as a USB-CAN(FD) interface.
SFP+ Module Compatibility
The media converter supports any SFP+ copper or optical modules that support the 10 Gbps speed. However, majority of SFP+ modules will not operate correctly at 5 Gbps and 2.5 Gbps speeds. We offer our 1/2.5/5/10G SFP+ RJ-45 module (P/N: 10GSFP1-RJ45) that operates reliably at 10 Gbps and 5 Gbps speeds, and 2.5GBASE-T SFP+ RJ-45 module (P/N: 2.5GSFP1-RJ45) for 2.5 Gbps speed.
Accessories – to be ordered separately
1/2.5/5/10G SFP+ Module RJ-45 (for 10 Gbps and 5 Gbps speeds)
2.5G SFP+ Module RJ-45 (for 2.5 Gbps speed)
Rosenberger H-MTD connecting cable
TE MATEnet – Rosenberger H-MTD adapter
Rosenberger H-MTD – terminal adapter
Molex Micro-Fit 6-pin – open-end cable harness
DIN rail bracket
